An all-in-one solar-powered tower makes carbon-neutral jet fuel

Embargoed until: Publicly released:
Peer-reviewed: This work was reviewed and scrutinised by relevant independent experts.

International researchers have found a way to produce aviation fuel using water, carbon dioxide (CO2), and sunlight. The team developed a tower that uses solar energy to produce a synthetic alternative to fossil-derived fuels like kerosene and diesel. According to the research team, the fuel that is produced is fully compatible with the existing aviation infrastructure for fuel storage, distribution, and use in jet engines. While the system is currently only able to convert around 4% of the solar energy into fuel, the team say they are working on improving this efficiency to over 15%.

Journal/conference: Joule

Link to research (DOI): 10.1016/j.joule.2022.06.012

Organisation/s: ETH Zurich, Switzerland

Funder: We gratefully acknowledge financial support from the Swiss State Secretariat for Education, Research, and Innovation (grant No. 15.0330) and the EU Horizon 2020 research and innovation program (project SUN-to-LIQUID, grant No. 654408).

Media release

From: Cell Press

Peer-reviewed           Experimental study

All-in-one solar-powered tower makes carbon-neutral jet fuel

Researchers have designed a fuel production system that uses water, carbon dioxide (CO2), and sunlight to produce aviation fuel. They have implemented the system in the field, and the design, publishing July 20 in the journal Joule, could help the aviation industry become carbon neutral.

“We are the first to demonstrate the entire thermochemical process chain from water and CO2 to kerosene in a fully-integrated solar tower system,” says Aldo Steinfeld (@solarfuels), a professor from ETH Zurich and the corresponding author of the paper. Previous attempts to produce aviation fuels through the use of solar energy have mostly been performed in the laboratory.

The aviation sector is responsible for about 5% of global anthropogenic emissions causing climate change. It relies heavily on kerosene, or jet fuel, which is a liquid hydrocarbon fuel typically derived from crude oil. Currently, no clean alternative is available to power long-haul commercial flights at the global scale.

“With our solar technology, we have shown that we can produce synthetic kerosene from water and CO2 instead of deriving it from fossil fuels. The amount of CO2 emitted during kerosene combustion in a jet engine equals that consumed during its production in the solar plant,” Steinfeld says. “That makes the fuel carbon neutral, especially if we use CO2 captured directly from the air as an ingredient, hopefully in the not-too-distant future.”

As a part of the European Union’s SUN-to-LIQUID project, Steinfeld and his colleagues have developed a system that uses solar energy to produce drop-in fuels, which are synthetic alternatives to fossil-derived fuels such as kerosene and diesel. The solar-made kerosene is fully compatible with the existing aviation infrastructure for fuel storage, distribution, and end use in jet engines, Steinfeld says. It can also be blended with fossil-derived kerosene, he adds.

In 2017, the team started scaling up the design and built a solar fuel-production plant at IMDEA Energy Institute in Spain. The plant consists of 169 sun-tracking reflective panels that redirect and concentrate solar radiation into a solar reactor mounted on top of a tower. The concentrated solar energy then drives oxidation-reduction (redox) reaction cycles in the solar reactor, which contains a porous structure made of ceria. The ceria –which is not consumed but can be used over and over –converts water and CO2 injected into the reactor into syngas, a tailored mixture of hydrogen and carbon monoxide. Subsequently, syngas is sent into a gas-to-liquid converter, where it is finally processed into liquid hydrocarbon fuels that include kerosene and diesel.

“This solar tower fuel plant was operated with a setup relevant to industrial implementation, setting a technological milestone towards the production of sustainable aviation fuels,” Steinfeld says.

During a nine-day run of the plant reported in the paper, the solar reactor’s energy efficiency—the portion of solar energy input that is converted into the energy content of the syngas produced—was around 4%. Steinfeld says his team is working intensively on improving the design to increase the efficiency to values over 15%. For example, they are exploring ways to optimize the ceria structure for absorbing solar radiation and developing methods to recover the heat released during the redox cycles.

###

News for:

International

Multimedia:

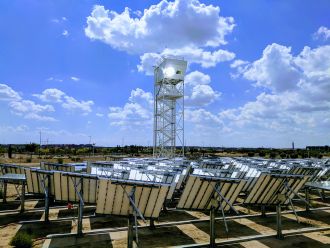

  • Solar tower fuel plant
    Solar tower fuel plant

    Solar tower fuel plant during operation

    File size: 1.1 MB

    Attribution: IMDEA Energy

    Permission category: Free to share (must credit)

    Last modified: 22 Jul 2022 12:29am

    NOTE: High resolution files can only be downloaded here by registered journalists who are logged in.

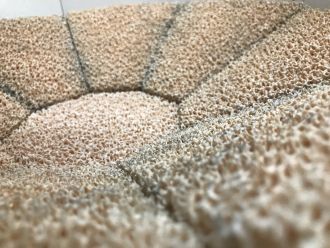

  • Porous structure made of ceria
    Porous structure made of ceria

    The reactor contains a reticulated porous structure made of ceria

    File size: 1.1 MB

    Attribution: ETH Zurich

    Permission category: Free to share (must credit)

    Last modified: 22 Jul 2022 12:34am

    NOTE: High resolution files can only be downloaded here by registered journalists who are logged in.

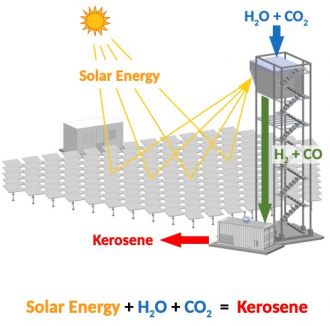

  • Schematic of the solar tower fuel plant
    Schematic of the solar tower fuel plant

    Schematic of the solar tower fuel plant

    File size: 54.8 KB

    Attribution: ETH Zurich

    Permission category: Free to share (must credit)

    Last modified: 22 Jul 2022 12:28am

    NOTE: High resolution files can only be downloaded here by registered journalists who are logged in.
